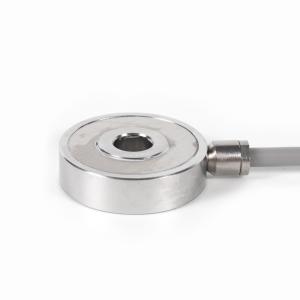

Thru Hole Donut Load Cell 50n 100n 200n 500n 1000n- CF-814A
Product Description:
CF-814A thru-Hole (Donut) Load Cells are major players when measuring the tightening of load directly. Our Thru-Hole Series offers a variety of capacities and inner diameter sizes making it ideal for bolt fastening applications. Its fully welded stainless steel construction and high overload capability for optimum performance.
This load cell is a variation of the compression load cell and features a through-hole design for use as a load washer to measure bolt loading, clamping forces, and overloads. Rugged stainless steel construction and reliable strain gage technology make this unit popular for a variety of industrial applications.
Brans are always devoted to delivering satisfied and favourable services to each our clients to meet their specific needs. We deeply understand that each apllication is different and requires a customized response.
To make sure providing the best solution, the load cell can be adapted to meet customer requirements.
Specifications:
| Capacity | 10,20,50,100,200,500N |
| Rated output | 2.0±10%mV/V |
| Zero balance | ± 0.03mV/V |
| Non‐linearity | 0.10%F.S. |
| Hysteresis | 0.20%F.S. |
| Repeatability | 0.20%F.S. |
| Combined error | 0.20%F.S. |
| Temp.effect on output | 0.05%F.S./10ºC |
| Temp.effect on zero | 0.05%F.S./10ºC |
| Input impedance | 350±10Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Operation temp range | ‐40~120ºC |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | φ3×4000mm |
| Material | Stainless Steel |
| IP Class | IP67 |
Dimension(MM):
Load Direction:
Wiring:
