WL-129 Stainless Bellows Load Cell (5-500kg) - mg-Level Precision for Dosing Systems
Features & Applications
Key Features:
Applications:
✔ Dosing systems
✔ Tank weighing
✔ Conveyor scales
✔ Platform scales
Advantages:
Our Commitment:
At Brans, we pride ourselves on delivering tailored solutions that precisely match our clients' unique requirements. Recognizing that every application has distinct challenges, we offer customizable single point load cell configurations to ensure optimal performance for your specific needs.
Custom Solutions Available:
• Application-specific adaptations
• Modified specifications upon request
• Engineering support for specialized requirements
Specifications:
| Capacity | 5/10/20/30/50/100/200/500kg |
| Combined Error | 0.018%F.S. |
| Non-linearity | 0.018%F.S. |
| Repeatability | 0.018%F.S. |
| Rated Output1.94 | 2.0±0.05mV/V |
| Zero Balance | ±2%F.S. |
| Insulation Resistance | >5000MΩ/100VDC |
| Recommended Excitation5 | 5~15VDC |
| Material | Stainless Steel |
| Operation temp | -30~70°C |
| Safe overload | 150%F.S. |
| IP class | IP68 (Customizable) |
| Cable size | Ф5.4x3000mm(Customizable) |
Dimension(MM):
Load Direction:
Wiring:
Load Cell Packaging & Shipping Standards
At Brans, we implement rigorous packaging protocols to guarantee your load cell arrives in perfect condition:
1. Multi-Layer Protective Packaging
• Primary Protection: Each unit is vacuum-sealed in moisture-proof barrier film
• Secondary Cushioning: High-density EPS foam molded to the load cell's contours
• Tertiary Security: Reinforced double-wall corrugated shipping container
2. Advanced Shock Mitigation System
• Multi-axis vibration damping with PE bubble wrap
• Edge protectors for all sensitive components
• "Fragile" and "This Side Up" labeling per ISTA standards
3. Secure Transit Assurance
• Tamper-evident security tape with company logo
• Barcoded shipping labels with QR tracking
• Certified weighing at dispatch for freight verification
4. Premium Logistics Network
• Partnered with DHL/FedEx/UPS for global coverage
• Real-time tracking updates via SMS/email
• 24/7 shipment monitoring by our logistics team
Post-Delivery Protocol:
• Recommended inspection within 48 hours
• Damage claims must include original packaging photos
|
|

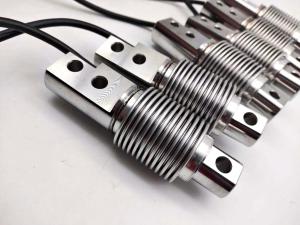

WL-129 Stainless Bellows Load Cell (5-500kg) - mg-Level Precision for Dosing Systems Images
|
