High-Precision WLSM-135: Compact Design with Overload Protection for Micro-Dosing Systems

Name: HighPrecision WLSM135 Compact Design with Overload Protection for MicroDosing Systems
Brand: BRANS
Price: 1 USD

Brand Name : BRANS

Model Number : WLSM-135

Place of Origin : China

MOQ : 1pcs

Payment Terms : L/C,T/T,Western Union,Paypal

Delivery Time : 5-7 work days

Packaging Details : Standard exporter carton packing including of instructions. Water Proof & Shock Resistance

Capacity : 10/20/50/80/100g

Combined Error : lmg, customized 0.lmg

Non-linearity : 0.015%F.S.

Repeatability : 0.015%F.S.

Rated Output : 1.8~2.0mV/V

Zero Balance : ±0.1mV/V

Insulation Resistance : >5000MΩ/100VDC

Recommended Excitation : 10VDC

Material : Aluminum Alloy

Safe Overload : 150%F.S

Protection Class : IP65 (Customizable)

Operation Temp. : -10~50°C

Cable Size : Ф4x350mm (Customizable)

Max.platform Size : 10mmx10mm

Contact Now

High-Precision WLSM-135: Compact Design with Overload Protection for Micro-Dosing Systems

Features & Applications

Key Features:

Compact, easy-to-install design
Integrated overload protection
mg-level resolution
Exceptional stability
High-precision performance

Applications:
Pharmaceutical micro-dosing
Cosmetic filling systems
Food packaging lines
Small-batch production QC
Precision batching systems

Our Commitment:
At Brans, we pride ourselves on delivering tailored solutions that precisely match our clients' unique requirements. Recognizing that every application has distinct challenges, we offer customizable single point load cell configurations to ensure optimal performance for your specific needs.

Custom Solutions Available:
• Application-specific adaptations
• Modified specifications upon request
• Engineering support for specialized requirements

Specifications:

Capacity	10/20/50/80/100g
Combined Error	lmg, customized 0.lmg
Non-linearity	0.015%F S.
Repeatability	0.015%F S
Rated Output	1.8~2.0mV/V
Zero Balance	±0.1mV/V
Insulation Resistance	>5000MΩ/100VDC
Recommended Excitation	10VDC
Material	Aluminum Alloy
Operation temp	-10~50°C
Safe overload	150%F.S.
IP class	IP65 (Customizable)
Cable size	Ф4x350mm (Customizable)

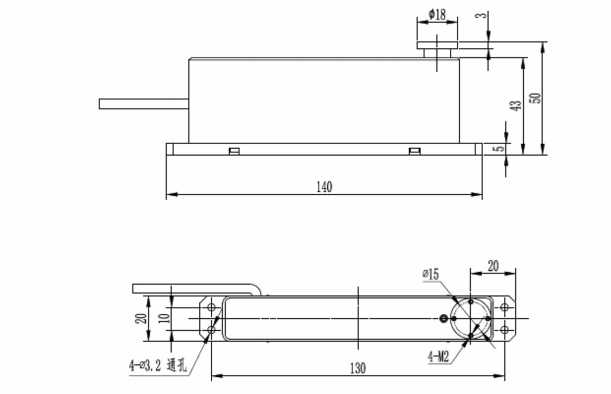

Dimension(MM):

High-Precision WLSM-135: Compact Design with Overload Protection for Micro-Dosing Systems

Load Direction:

High-Precision WLSM-135: Compact Design with Overload Protection for Micro-Dosing Systems
Wiring code :

Load Cell Packaging & Shipping Standards

At Brans, we implement rigorous packaging protocols to guarantee your load cell arrives in perfect condition:

1. Multi-Layer Protective Packaging
• Primary Protection: Each unit is vacuum-sealed in moisture-proof barrier film
• Secondary Cushioning: High-density EPS foam molded to the load cell's contours
• Tertiary Security: Reinforced double-wall corrugated shipping container

2. Advanced Shock Mitigation System
• Multi-axis vibration damping with PE bubble wrap
• Edge protectors for all sensitive components
• "Fragile" and "This Side Up" labeling per ISTA standards

3. Secure Transit Assurance
• Tamper-evident security tape with company logo
• Barcoded shipping labels with QR tracking
• Certified weighing at dispatch for freight verification

4. Premium Logistics Network
• Partnered with DHL/FedEx/UPS for global coverage
• Real-time tracking updates via SMS/email
• 24/7 shipment monitoring by our logistics team

Post-Delivery Protocol:
• Recommended inspection within 48 hours
• Damage claims must include original packaging photos
